CDD Basics: How Shared Decision Graphs Compress Non-Convex Symbolic Sets

This page continues naturally from Federations: Exact Unions Of DBM Zones. Federations already show that finite unions of DBMs can represent non-convex sets exactly. CDDs push on the next question: once a verifier accumulates many related non-convex pieces, can they be stored as one shared decision structure instead of as a long flat DBM list? [UPP_VER_CDD] [BEHR03_CDD_PAGE] [UCDD_REPO].

That is why the most direct way into CDDs is to start with the shared-graph idea itself. CDDs reuse that idea, but apply it to clock-difference constraints rather than only to boolean conditions.

This page connects four layers:

  • how BDDs use shared graphs to represent condition structure

  • how CDDs transfer that idea to clock-difference constraints

  • why explicit DBM lists become a bottleneck in verification workflows

  • what the current UCDD and pyudbm.binding.ucdd layers expose, and what those operations mean algorithmically

From BDDs To CDDs: Why Shared Graphs Matter

BDD Intuition: Shared Decision Graphs

A binary decision diagram is best understood first as a structural idea.

Its core move is simple: represent a boolean function as a shared DAG rather than as a fully expanded decision tree or truth table.

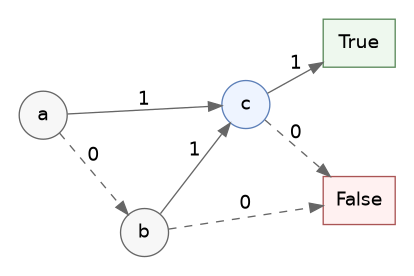

For example, consider

\[f(a,b,c) = (a \land c) \lor (\neg a \land b \land c).\]

Evaluating this function means answering a sequence of boolean questions:

  • is \(a\) true or false?

  • then perhaps inspect \(b\) or \(c\)

  • finally reach a True or False terminal

digraph bdd_basics {
    rankdir=LR;
    graph [pad="0.2", nodesep="0.7", ranksep="0.42", splines=true];
    node [shape=circle, style="filled", fillcolor="#f7f7f7", color="#666666", fontname="Helvetica"];
    edge [color="#666666", fontname="Helvetica"];

    a [label="a"];
    b [label="b"];
    c [label="c", fillcolor="#eef4ff", color="#5c7fb8"];
    t [shape=box, label="True", fillcolor="#eef8ee", color="#5b8a5b"];
    f [shape=box, label="False", fillcolor="#fff1f1", color="#aa5555"];

    a -> c [label="1"];
    a -> b [label="0", style=dashed];
    b -> c [label="1"];
    b -> f [label="0", style=dashed];
    c -> t [label="1"];
    c -> f [label="0", style=dashed];
}

The most important thing to notice is the shared c node. Two different paths reuse the same suffix instead of duplicating it. That is exactly what makes the diagram useful as a data structure rather than just as a picture.

For this tutorial, the most useful BDD-level picture is just this:

  • it represents a boolean function

  • each inner node asks about one boolean variable

  • edges typically mean 0 / 1 or False / True

  • the structure is a shared graph, not a tree with all suffixes copied

With that in mind, the move to CDDs becomes natural:

  • BDD inner nodes test boolean variables

  • CDD inner nodes test which interval contains one clock difference

  • BDD edges are labeled by 0 / 1

  • CDD edges are labeled by intervals

So a CDD reuses the same structural idea of ordered decisions, shared suffixes, true/false terminals, and reduced graph maintenance, but swaps boolean-variable tests for clock-difference interval tests.

Why Look Beyond Explicit Federations

With that BDD intuition in place, the motivation for CDDs becomes much less abrupt.

In WAIT / PASSED style reachability, the real pressure point is not whether one individual zone can be represented, but whether all zones already seen at one control location can be stored and queried as one compact symbolic object.

The CDD paper makes the relaxed stopping condition explicit [BEHR03_CDD_PAGE]:

\[D \subseteq \bigcup \{\, D' \mid (l, D') \in \mathrm{PASSED} \,\}. \tag{1}\]

In words:

  • \(D\) is the newly generated zone

  • the relevant question is whether location \(l\) is already covered collectively by what is in PASSED

  • if yes, expanding \(D\) again is unnecessary

An explicit federation still writes this as

\[F = D_1 \cup D_2 \cup \cdots \cup D_n,\]

which is semantically fine. But once non-convexity becomes strong, three costs become visible:

  • the number of DBM pieces may grow quickly

  • structurally similar tails cannot be shared across pieces in a plain list

  • the practically important question is often “is this new zone included in the whole non-convex object?”, not “is one DBM equal to another?”

That is where CDDs enter: they bring the shared-graph intuition of BDDs into the clock-constraint world, encoding finite unions of zones as a shared DAG instead of a permanently flattened DBM list [BEHR03_CDD_PAGE] [UCDD_CDD_H].

digraph explicit_vs_shared {
    rankdir=LR;
    graph [pad="0.2", nodesep="0.45", ranksep="0.75", splines=true];
    node [shape=box, style="rounded,filled", fillcolor="#f7f7f7", color="#666666", fontname="Helvetica", fontsize=10];
    edge [color="#666666", fontname="Helvetica", fontsize=10];

    subgraph cluster_left {
        label="Explicit federation / DBM list";
        color="#cfcfcf";
        style="rounded,dashed";

        l0 [label="D1\n0<=x-y<=2\n0<=x<=1\n0<=y<=2"];
        l1 [label="D2\n0<=x-y<=2\n4<=x<=5\n0<=y<=2"];
        l2 [label="D3\n4<=x-y<=6\n0<=x<=1\n0<=y<=2"];
        l3 [label="D4\n4<=x-y<=6\n4<=x<=5\n0<=y<=2"];
        lu [label="Same non-convex set\nD1 U D2 U D3 U D4", fillcolor="#eef8ee", color="#5b8a5b", width=1.8];

        l0 -> lu;
        l1 -> lu;
        l2 -> lu;
        l3 -> lu;
    }

    subgraph cluster_right {
        label="Shared CDD";
        color="#cfcfcf";
        style="rounded,dashed";

        r0 [label="x - y"];
        r1 [label="x"];
        r2 [label="y", fillcolor="#eef4ff", color="#5c7fb8"];
        rt [label="True", fillcolor="#eef8ee", color="#5b8a5b"];
        rf [label="False", fillcolor="#fff1f1", color="#aa5555"];

        subgraph cluster_suffix {
            label="shared suffix";
            color="#b9cde5";
            style="rounded,dashed";

            r2;
            rt;
            rf;
        }

        r0 -> r1 [label="[0, 2]"];
        r0 -> r1 [label="[4, 6]"];
        r0 -> rf [label="otherwise"];
        r1 -> r2 [label="[0, 1]"];
        r1 -> r2 [label="[4, 5]"];
        r1 -> rf [label="otherwise"];
        r2 -> rt [label="[0, 2]"];
        r2 -> rf [label="otherwise"];
    }
}

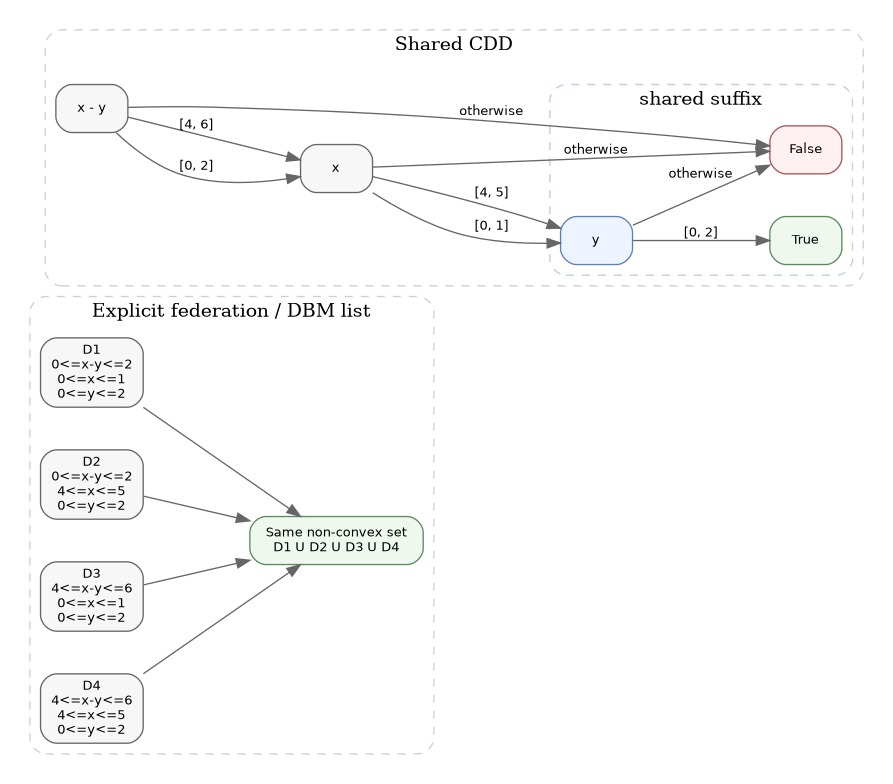

Both sides of this diagram represent the same non-convex set:

\[F = D_1 \cup D_2 \cup D_3 \cup D_4,\]

where

\[\begin{split}\begin{aligned} D_1 &: 0 \leq x-y \leq 2,\; 0 \leq x \leq 1,\; 0 \leq y \leq 2, \\ D_2 &: 0 \leq x-y \leq 2,\; 4 \leq x \leq 5,\; 0 \leq y \leq 2, \\ D_3 &: 4 \leq x-y \leq 6,\; 0 \leq x \leq 1,\; 0 \leq y \leq 2, \\ D_4 &: 4 \leq x-y \leq 6,\; 4 \leq x \leq 5,\; 0 \leq y \leq 2. \end{aligned}\end{split}\]

The left side writes this as four explicit DBMs. The right side rewrites the same constraints as a shared decision graph:

  • first test whether \(x-y\) lies in [0,2] or [4,6]

  • then test whether \(x\) lies in [0,1] or [4,5]

  • finally enter the dashed shared-suffix box, where \(y \in [0,2]\) is checked once

So the point is not just that “the right side has sharing”. It is that for the same set, the explicit federation repeats the suffix condition \(y \in [0,2]\) inside all four DBMs, whereas the CDD keeps that suffix once and lets multiple earlier branches point to it.

From the current Python wrapper perspective, this is not just historical background. pyudbm.binding.ucdd now exposes CDD.from_federation(), CDD.contains_dbm(), CDD.extract_dbm(), and CDD.extract_bdd_and_dbm() directly [PYUDBM_UCDD_PY] [PYUDBM_UCDD_CPP]. That makes the “CDD <-> DBM / federation” bridge a real user-facing workflow.

The Core Definition: Nodes, Intervals, and Semantics

The paper-level definition can be compressed into one sentence: a CDD is an ordered reduced DAG whose inner nodes inspect one clock difference and whose outgoing edges are labeled by intervals for that difference.

Fix a type

\[t = (i, j), \qquad 1 \leq i < j \leq n\]

and let

\[I(i, j)\]

denote the constraint saying that \(X_i - X_j\) lies in interval \(I\).

Then an inner node does not ask a yes/no question about one boolean variable; it asks: which interval contains the current value of one clock difference?

The semantics can be written as [BEHR03_CDD_PAGE]:

\[\llbracket False \rrbracket = \emptyset, \qquad \llbracket True \rrbracket = \mathcal{V},\]
\[\llbracket n \rrbracket = \{\, v \in \mathcal{V} \mid \exists I, m.\; n \xrightarrow{I} m \land I(type(n))(v) \land v \in \llbracket m \rrbracket \,\}.\]

So evaluation is path-based:

  • inspect the clock difference attached to the current node

  • follow the unique interval edge matching the current valuation

  • accept the valuation if the path ends in True

This is also where the main difference from ROBDDs shows up. Clock-difference constraints are not independent. Bounds on \(X\), \(Y\), and \(X-Y\) interact. That is why the paper emphasizes that CDDs do not gain a simple canonical form just by fixing an order and applying sharing [BEHR03_CDD_PAGE].

The definition therefore includes extra structural requirements:

  • successor intervals of one node must be pairwise disjoint

  • they must cover the real line

  • the graph must respect the global order on types

  • the reduced form uses maximal sharing and avoids trivial full-line edges

Later the paper introduces tightened and equally fine partitioned CDDs. The key normal-form statement is [BEHR03_CDD_PAGE]:

\[\llbracket C_1 \rrbracket = \llbracket C_2 \rrbracket \iff C_1 \cong C_2\]

but only under those extra hypotheses. For practical understanding, the important takeaway is not “CDDs are automatically canonical”; it is: CDDs share aggressively, but equivalence and normal-form reasoning are more subtle than in ROBDDs.

From The Paper’s Continuous CDDs To Today’s Mixed Symbolic Graphs

If one only follows the original 1999 paper narrative, it is natural to think of a CDD mainly as “one shared structure compressing many continuous zones at one location”. That is still true, but it is no longer the whole story for the current UCDD and pyudbm.binding.ucdd.

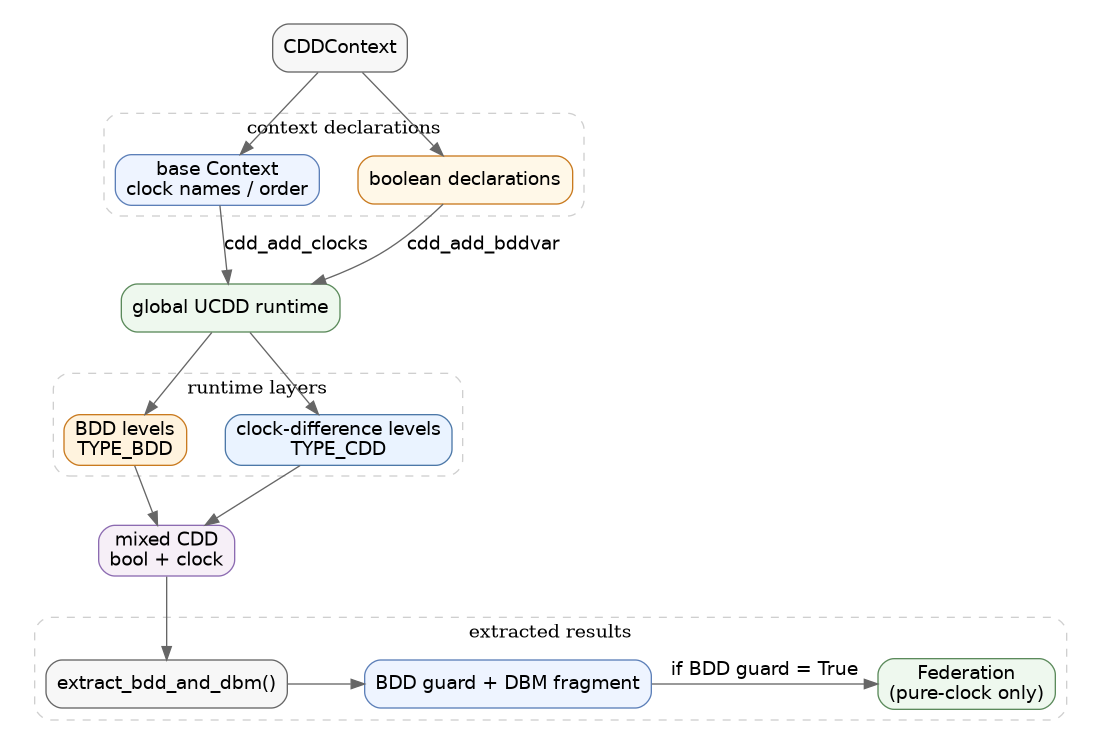

In the actual UCDD codebase, BDD levels and clock-difference levels live inside the same runtime and may appear in the same symbolic graph [UCDD_CDD_H] [PYUDBM_UCDD_CPP] [PYUDBM_UCDD_PY].

The public header says this quite explicitly:

  • the module supports both BDD nodes and CDD nodes

  • if only booleans are declared, it degenerates to a BDD library

  • with both clocks and booleans, the total number of levels is \(O(n^2 + m)\): clock-difference levels from clock pairs, plus boolean-decision levels

The low-level API reflects exactly that split:

  • TYPE_CDD = 0 and TYPE_BDD = 1

  • LevelInfo exposes type, clock1, clock2, and diff

  • cdd_add_bddvar(n) extends the global runtime with boolean levels

  • cdd_add_clocks(n) extends it with clock-difference levels, whose space is \(O(c^2)\)

digraph runtime_layout {
    rankdir=TB;
    graph [pad="0.25", nodesep="0.4", ranksep="0.6", splines=true];
    node [shape=box, style="rounded,filled", fillcolor="#f7f7f7", color="#666666", fontname="Helvetica"];
    edge [color="#666666", fontname="Helvetica"];

    ctx [label="CDDContext"];
    base [label="base Context\nclock names / order", fillcolor="#eef4ff", color="#5c7fb8"];
    bools [label="boolean declarations", fillcolor="#fff8e8", color="#c97a1f"];
    runtime [label="global UCDD runtime", fillcolor="#eef8ee", color="#5b8a5b"];
    bdd [label="BDD levels\nTYPE_BDD", fillcolor="#fff3de", color="#c97a1f"];
    cdd [label="clock-difference levels\nTYPE_CDD", fillcolor="#eaf3ff", color="#4c78a8"];
    mixed [label="mixed CDD\nbool + clock", fillcolor="#f6eff7", color="#8c6bb1"];
    extract [label="extract_bdd_and_dbm()", fillcolor="#f7f7f7"];
    dbm [label="BDD guard + DBM fragment", fillcolor="#eef4ff", color="#5c7fb8"];
    fed [label="Federation\n(pure-clock only)", fillcolor="#eef8ee", color="#5b8a5b"];

    subgraph cluster_decl {
        label="context declarations";
        color="#cfcfcf";
        style="rounded,dashed";

        {
            rank=same;
            base;
            bools;
        }
    }

    subgraph cluster_runtime {
        label="runtime layers";
        color="#cfcfcf";
        style="rounded,dashed";

        {
            rank=same;
            bdd;
            cdd;
        }
    }

    subgraph cluster_result {
        label="extracted results";
        color="#cfcfcf";
        style="rounded,dashed";

        {
            rank=same;
            extract;
            dbm;
            fed;
        }
    }

    ctx -> base;
    ctx -> bools;
    base -> runtime [label="cdd_add_clocks"];
    bools -> runtime [label="cdd_add_bddvar"];
    runtime -> bdd;
    runtime -> cdd;
    bdd -> mixed;
    cdd -> mixed;
    mixed -> extract;
    extract -> dbm;
    dbm -> fed [label="if BDD guard = True"];
}

At the Python layer, this mixed structure is user-facing rather than hidden:

So once you are in the Python DSL, booleans and zones are not two loose side-by-side objects. They are woven into one symbolic object. For example, starting from pyudbm.binding.udbm.Context and pyudbm.binding.udbm.Context.to_cdd_context():

from pyudbm import Context

base = Context(["x", "y"], name="c")
ctx = base.to_cdd_context(bools=["door_open", "alarm"])

state = ((ctx.x <= 5) & ctx.door_open) | ((ctx.y <= 2) & ~ctx.door_open)

This state is not merely “a boolean formula plus a federation”. It is one mixed graph. Along a root-to-terminal path you may encounter boolean levels and clock-difference levels together, and the path as a whole defines one boolean guard together with one zone fragment.

The same example can be written as

\[state = \bigl(door\_open \land 0 \leq x \leq 5\bigr) \;\lor\; \bigl(\neg door\_open \land 0 \leq y \leq 2\bigr).\]

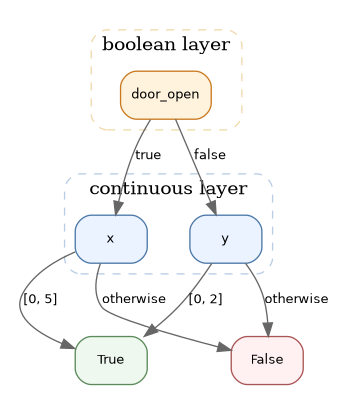

If you sketch it as one mixed “boolean layer + continuous layer” object, the shape looks roughly like this:

digraph mixed_bool_zone {
    rankdir=TB;
    graph [pad="0.2", nodesep="0.45", ranksep="0.6", splines=true];
    node [shape=box, style="rounded,filled", fillcolor="#f7f7f7", color="#666666", fontname="Helvetica", fontsize=10];
    edge [color="#666666", fontname="Helvetica", fontsize=10];

    b [label="door_open", fillcolor="#fff3de", color="#c97a1f"];
    x [label="x", fillcolor="#eaf3ff", color="#4c78a8"];
    y [label="y", fillcolor="#eaf3ff", color="#4c78a8"];
    t [label="True", fillcolor="#eef8ee", color="#5b8a5b"];
    f [label="False", fillcolor="#fff1f1", color="#aa5555"];

    subgraph cluster_bdd {
        label="boolean layer";
        color="#f0d9ab";
        style="rounded,dashed";
        b;
    }

    subgraph cluster_cdd {
        label="continuous layer";
        color="#b9cde5";
        style="rounded,dashed";
        {
            rank=same;
            x;
            y;
        }
    }

    b -> x [label="true"];
    b -> y [label="false"];
    x -> t [label="[0, 5]"];
    x -> f [label="otherwise"];
    y -> t [label="[0, 2]"];
    y -> f [label="otherwise"];
}

This diagram does not claim that UCDD stores the graph in exactly this one node layout. It visualizes the mixed path semantics of one CDD:

  • the root tests the boolean variable door_open

  • the true branch continues with the clock constraint \(x \in [0,5]\)

  • the false branch continues with \(y \in [0,2]\)

  • one graph therefore carries both discrete guards and continuous zone pieces

For the current implementation, the most faithful mental model is:

\[state \equiv \bigvee_k \bigl(B_k \land D_k\bigr),\]

where \(B_k\) is the boolean guard extracted from one path and \(D_k\) is the associated DBM fragment. That formula is not a verbatim paper definition. It is an implementation-level summary induced directly by the current extraction API:

Together these behaviors almost spell out the runtime model: a mixed CDD represents many “boolean-guarded zone fragments”; a plain federation can only carry the special case where those guards collapse to truth.

So in real UCDD, “zones and booleans coexist” is not a vague slogan. It means:

  • boolean variables occupy BDD levels

  • clock-difference constraints occupy CDD levels

  • both share one global level order and one decision graph

  • one extracted path becomes “guard + zone fragment”

  • forward and backward discrete operators can accept both clock resets and boolean resets

Three practical boundaries are worth remembering:

  • the UCDD runtime is process-global, and the wrapper enforces one compatible clock order plus one compatible boolean-prefix layout at a time

  • boolean layouts can only grow compatibly by prefix; arbitrary renamings do not coexist in one live runtime

  • native extract_* helpers require reduced CDDs, and the Python layer absorbs that precondition automatically [UCDD_CDD_H] [PYUDBM_UCDD_PY]

That is also why CDDs matter here as more than historical background:

  • they support a more unified Python-first symbolic workflow

  • they keep the repository from ossifying at the level of explicit DBM federations alone

With that implementation picture in mind, the verification role of CDDs becomes clearer.

What CDDs Are Doing Inside Verification

Placed back inside timed-automata symbolic semantics, CDDs take over three jobs.

First, they turn “many zones at one location” into a first-class object. That is the story behind formula (1) and behind the paper’s use of a CDD to compress the continuous part of PASSED.

Second, they aim to support DBM-like symbolic transforms. At the semantic level, the two central operations are still [UPP_SEM_CDD] [BY04_CDD] [BEHR03_CDD_PAGE]:

\[D^\uparrow = \{\, u + d \mid u \in D,\ d \in \mathbb{R}_{\ge 0} \,\},\]
\[r(D) = \{\, [r \mapsto 0]u \mid u \in D \,\}.\]

That is, time elapse and clock reset. The paper’s final section states explicitly that, with tightened CDDs, these operations can be defined along the same overall lines as for DBMs [BEHR03_CDD_PAGE].

Third, CDDs support whole-set boolean and inclusion-style reasoning:

  • union, intersection, complement

  • constructing a CDD from a constraint system / DBM

  • checking whether one zone is included in one CDD

The asymmetric query

\[subset(D, C)\]

is especially important in reachability: one fresh zone \(D\), one accumulated non-convex object \(C\).

Current API And Verification Meaning

API

Category

Verification meaning

Notes

from_dbm / from_federation

Bridging

Move zones / federations into CDD form

Useful for connecting explicit DBM workflows to shared diagrams

& / | / - / ^ / ~

Set / boolean algebra

intersection, union, difference, xor, complement

boolean literals and clock constraints live in one graph

reduce / reduce2 / equiv

Representation maintenance

reduction and semantic equivalence

extraction-oriented helpers depend on reduced form

contains_dbm

Inclusion

ask whether a new zone is already covered

this matches the paper’s most important asymmetric query

extract_dbm / extract_bdd / extract_bdd_and_dbm

Decomposition

split one mixed graph into guard + DBM fragments

crucial for interop with DBM / federation code

bdd_traces

Boolean inspection

enumerate satisfying boolean assignments

especially useful for debugging mixed symbolic states

delay / past / delay_invariant / predt

Time operators

forward and backward time closure

align with timed-automata delay predecessor / successor reasoning

apply_reset / transition

Forward discrete-step operators

guard + clock/bool updates

transition is the edge-like high-level form

transition_back / transition_back_past

Backward discrete-step operators

symbolic predecessors of an edge

directly relevant to backward reachability

to_federation

Conversion back to explicit union form

only for pure-clock CDDs

mixed boolean guards are rejected explicitly

Understanding The Core Operations In Verification Terms

contains_dbm(): The Question Is Coverage, Not Similarity

For reachability, one of the most valuable questions is

\[D \subseteq F_{\mathrm{passed}} \; ?\]

meaning “is this new zone already covered by the accumulated symbolic object?”

This is not a symmetric equality test. It is an incoming zone versus old CDD inclusion query. Section 4.2 of the paper treats exactly this as a key operation, and the current Python API exposes it as CDD.contains_dbm(dbm) [BEHR03_CDD_PAGE] [PYUDBM_UCDD_PY].

Three-panel figure showing a passed-set union, a candidate DBM zone, and the final inclusion relation D subseteq F_passed.

The rightmost panel illustrates the practical meaning: if the candidate zone is already inside the accumulated non-convex set, expanding it again usually adds no new timing information.

reduce() and extract_*(): Splitting A Shared Graph Into Guards And DBMs

For the current wrapper, a useful operational view is

\[C \equiv \bigvee_{k=1}^{m} \bigl(B_k \land D_k\bigr). \tag{2}\]

This is an inference from the current extraction API rather than a verbatim paper definition: repeated extract_bdd_and_dbm() calls peel one boolean guard \(B_k\) plus one DBM fragment \(D_k\) at a time until the remainder is empty.

Three-panel figure showing one mixed symbolic state and the two extracted guarded DBM fragments.

This matters because:

  • it provides a clean bridge back into existing DBM / federation algorithms

  • it exposes how boolean guards carve the continuous state space into pieces

It also clarifies a hard boundary: if a CDD still has a non-trivial boolean guard, it cannot be converted directly to a plain federation.

delay() and delay_invariant(): Time-Successor Operators

Timed-automata forward time semantics are still

\[D^\uparrow = \{\, u + d \mid u \in D,\ d \in \mathbb{R}_{\ge 0} \,\}.\]

So delay() should be read as: push the whole symbolic state forward in time while staying in the same discrete control point.

delay_invariant(I) adds the requirement that the invariant \(I\) remain satisfied during that time passage. That makes it the more direct fit for location-invariant reasoning.

Three-panel figure showing a source zone, its forward time successor, and the result of resetting x to zero.

The middle panel shows why this is a symbolic-state operator rather than a single-state simulator step: a small bounded region can expand into a much larger slanted band once all admissible time elapses are taken together.

apply_reset() and transition(): A Discrete Edge Is A Symbolic Transform

At the symbolic level, a discrete edge has the shape

\[\mathrm{Post}_e(S) = \mathrm{reset}\bigl(S \cap g\bigr),\]

where \(g\) is the guard. The current transition() method packages exactly that pattern: intersect with a guard, then perform clock and boolean updates [PYUDBM_UCDD_PY] [PYUDBM_UCDD_CPP].

In verification terms:

  • guard filters valuations that can actually take the edge

  • clock_resets implement clock updates on that edge

  • bool_resets implement the discrete-side updates at the same step

This is also where the current wrapper goes beyond the paper’s original continuous-only PASSED story: discrete guards and continuous constraints can be combined in one graph first, then advanced together through one transition.

past(), predt(), transition_back(), transition_back_past()

Forward reachability is only one half of the story. Backward search, safe predecessor reasoning, and some fixpoint algorithms need inverse-time and inverse-edge operators as first-class tools.

past() is the easiest one: it is the backward counterpart of delay().

predt(safe) can be interpreted as

\[\mathrm{PredT}(T, S) = \{\, u \mid \exists d \ge 0.\ u + d \in T \land \forall e \in [0, d].\ u + e \in S \,\}. \tag{3}\]

This is an inference from the current naming, tests, and the way the operator is combined with a safe region, rather than a literal wrapper comment. Under that reading, predt asks which states can reach the target through time while staying inside the safe region the whole way.

transition_back() and transition_back_past() then push that idea across discrete edges:

  • transition_back computes symbolic predecessors of a discrete step

  • transition_back_past also closes the result under inverse time elapse

Three-panel figure showing a post-state, the backward predecessor through one discrete transition, and the larger predecessor after adding backward time closure.

The third panel being larger than the second is exactly the point: first invert the edge, then add earlier time-predecessor states as well.

Important Takeaways

If this page leaves you with seven core points, they should be these:

  • Federations answer exact non-convex representation; CDDs answer sharing, compression, and whole-set querying.

  • The basic decision unit of a CDD is an interval over one clock difference, not a single boolean bit.

  • CDD structure is BDD-like, but it should not be explained as if it were automatically a simple ROBDD-style canonical form.

  • The most important paper-level query is whether one incoming zone is already covered by the accumulated `PASSED` CDD.

  • The current `pyudbm.binding.ucdd` layer already supports mixed boolean + clock symbolic graphs.

  • Operators such as `delay`, `reset`, `predt`, and `transition_back_past` make sense as timed-automata symbolic semantics, not just as isolated data-structure tricks.

  • A CDD with a non-trivial boolean guard cannot be flattened back into a plain federation directly.

Next

After CDDs, the next natural topic cluster is search, storage, extrapolation, and termination: now that zones, federations, and CDDs are all on the table, the next question is how they participate in real WAIT / PASSED loops.

References

[UPP_VER_CDD]

UPPAAL GUI documentation, Verifier. Public link: https://docs.uppaal.org/gui-reference/verifier/.

[BY04_CDD]

Johan Bengtsson and Wang Yi. Timed Automata: Semantics, Algorithms and Tools. Public link: https://uppaal.org/texts/by-lncs04.pdf. Repository guide: https://github.com/HansBug/pyudbm/blob/main/papers/by04/README.md.

[BEHR03_CDD_PAGE] (1,2,3,4,5,6,7,8,9)

Gerd Behrmann. Efficient Timed Reachability Analysis using Clock Difference Diagrams. Public link: https://www.brics.dk/RS/98/47/BRICS-RS-98-47.pdf. Repository guide: https://github.com/HansBug/pyudbm/blob/main/papers/behrmann03/paper-c/README.md.

[UCDD_REPO]

UPPAALModelChecker. UCDD. Public link: https://github.com/UPPAALModelChecker/UCDD.

[UCDD_CDD_H] (1,2,3)

UPPAALModelChecker. UCDD/include/cdd/cdd.h. Public link: https://github.com/UPPAALModelChecker/UCDD/blob/master/include/cdd/cdd.h.

[PYUDBM_UCDD_PY] (1,2,3,4,5)

HansBug. pyudbm/binding/ucdd.py. Public link: https://github.com/HansBug/pyudbm/blob/main/pyudbm/binding/ucdd.py.

[PYUDBM_UCDD_CPP] (1,2,3)

HansBug. pyudbm/binding/_ucdd.cpp. Public link: https://github.com/HansBug/pyudbm/blob/main/pyudbm/binding/_ucdd.cpp.
