Symbolic States and Zones
This page answers the next question after Queries and Properties: why does UPPAAL not enumerate concrete timed states one by one?
The short answer is that clocks range over the non-negative reals, so even a very small timed automaton already has infinitely many concrete states. UPPAAL therefore explores the state-space using symbolic states represented by constraints rather than by single valuations [UPP_VER_SS] [UPP_TRACE_SS].
From Explicit States To Symbolic States
The Running Pressure
Return to the small request/response automaton from the previous pages. Inside
location WaitAck, the clock x may satisfy:
These five symbols are already enough to create an infinite family of concrete states:
(WaitAck, x = 0)(WaitAck, x = 0.2)(WaitAck, x = 1.7)(WaitAck, x = 4.999)and infinitely many more in between
That is the core pressure point. Even before adding more processes or more clocks, continuous time has already destroyed any hope of plain explicit enumeration.

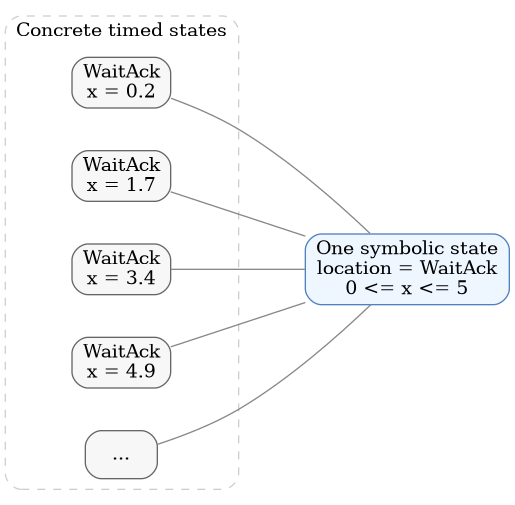

![digraph explicit_vs_symbolic {
rankdir=LR;
graph [splines=true, nodesep=0.45, ranksep=0.8];
node [shape=box, style="rounded,filled", fillcolor="#f7f7f7", color="#666666"];
subgraph cluster_concrete {
label="Concrete timed states";
color="#cfcfcf";
style="rounded,dashed";
c1 [label="WaitAck\nx = 0.2"];
c2 [label="WaitAck\nx = 1.7"];
c3 [label="WaitAck\nx = 3.4"];
c4 [label="WaitAck\nx = 4.9"];
c5 [label="..."];
}
sym [label="One symbolic state\nlocation = WaitAck\n0 <= x <= 5", fillcolor="#eef6ff", color="#4f81bd"];
c1 -> sym [arrowhead=none, color="#888888"];
c2 -> sym [arrowhead=none, color="#888888"];
c3 -> sym [arrowhead=none, color="#888888"];
c4 -> sym [arrowhead=none, color="#888888"];
c5 -> sym [arrowhead=none, color="#888888"];
}](../../_images/graphviz-442b2d2019fbf7541b23c04291e5922082d8c9ca.png)
The picture is intentionally simple: many concrete timed states in the same control location can be summarized by one symbolic description.
Why Explicit Timed States Explode
UPPAAL’s semantics is defined over a timed transition system whose states have the form
where \(L\) is a location vector and \(v\) is a valuation satisfying the current invariants [UPP_SEM_SS].
This notation is compact, but the implication is large:
\(L\) fixes the current control locations
\(v\) fixes the current values of clocks and variables
if clocks are real-valued, then even one fixed \(L\) can correspond to infinitely many different concrete states
With two clocks the space is even richer. If a model allows both x and
y to vary continuously, then the verifier is no longer facing a long list
of states, but a geometric space of possible valuations.
Why Symbolic States Help
The official UPPAAL documentation gives the operational intuition very clearly: the verifier explores symbolic states, and the symbolic simulator shows symbolic traces rather than single concrete traces [UPP_VER_SS] [UPP_TRACE_SS].
For tutorial purposes, the key idea is:
a symbolic state keeps the active locations fixed
it keeps the discrete-variable values fixed
it lets the clocks range over a whole set of valuations described by constraints
So instead of storing one valuation, we store a set of valuations:
Read this carefully:
\(Z\) is the zone-like clock part of the symbolic state
\(v\) ranges over valuations
\(v \models g_i\) means valuation \(v\) satisfies constraint \(g_i\)
the conjunction \(g_1 \land \cdots \land g_k\) says all listed clock constraints must hold together
For the running location WaitAck, the simplest example is:
This single set stands for every concrete state whose control location is
WaitAck and whose clock value stays inside the deadline window.
Regions, Zones, And Symbolic Successors
Regions And Zones Are Not The Same
Two symbolic ideas are easy to mix up:
regions provide a finite equivalence partition used in the theory of timed automata
zones are larger constraint-defined sets of valuations that tools manipulate directly
The region viewpoint matters because it explains why timed-automata verification can be made finite in principle. But UPPAAL-style tools are not built around explicit region objects in day-to-day verification work. They are built around zone-style constraints because delay, guard intersection, reset, and inclusion tests become much more natural there [BY04_SS] [LPW95_SS].
A Concrete One-Clock Example
Suppose there is only one clock x and the largest constant mentioned by the
model is 2.
Then the region viewpoint cuts the x-axis into a fixed finite partition
such as:
x = 00 < x < 1x = 11 < x < 2x = 2x > 2
That partition is fixed by the timed-automata theory. You do not choose it dynamically during exploration.
Now compare that with the zone
This one zone contains many concrete valuations at once:
\(v(x) = 0\)
\(v(x) = 0.2\)
\(v(x) = 0.8\)
\(v(x) = 1\)
\(v(x) = 1.7\)
More importantly, it also contains several different regions at once:
x = 00 < x < 1x = 11 < x < 2
That is the practical distinction:
a region is one small cell in a fixed theoretical partition
a zone is a constraint-defined set that the tool forms and manipulates as needed
So when people say zones are coarser than regions, this is exactly what they mean: one zone often covers many region cells at once.

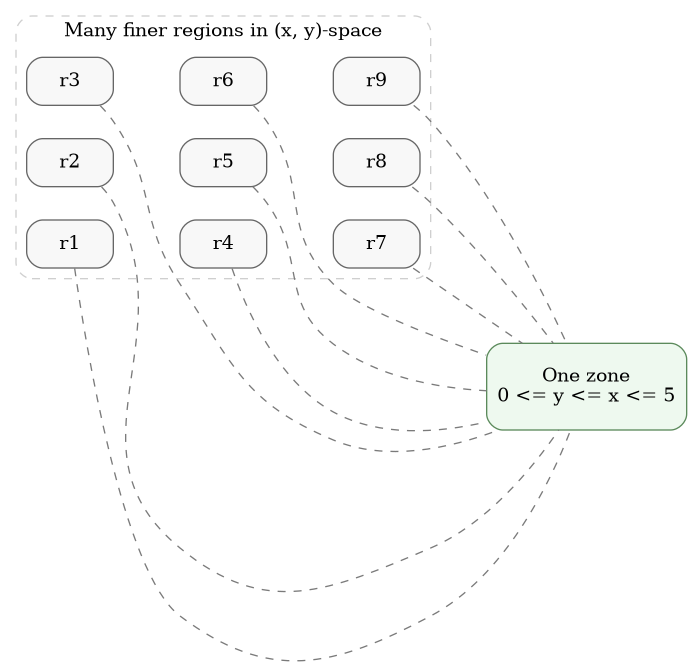

![digraph regions_vs_zone {
rankdir=LR;
graph [splines=true, nodesep=0.35, ranksep=0.7];
node [shape=box, style="rounded,filled", fillcolor="#f8f8f8", color="#666666", width=0.9, height=0.5];
subgraph cluster_regions {
label="Many finer regions in (x, y)-space";
color="#cfcfcf";
style="rounded,dashed";
r11 [label="r1"];
r12 [label="r2"];
r13 [label="r3"];
r21 [label="r4"];
r22 [label="r5"];
r23 [label="r6"];
r31 [label="r7"];
r32 [label="r8"];
r33 [label="r9"];
{ rank=same; r11; r12; r13; }
{ rank=same; r21; r22; r23; }
{ rank=same; r31; r32; r33; }
r11 -> r12 [style=invis];
r12 -> r13 [style=invis];
r21 -> r22 [style=invis];
r22 -> r23 [style=invis];
r31 -> r32 [style=invis];
r32 -> r33 [style=invis];
r11 -> r21 [style=invis];
r21 -> r31 [style=invis];
r12 -> r22 [style=invis];
r22 -> r32 [style=invis];
r13 -> r23 [style=invis];
r23 -> r33 [style=invis];
}
zone [label="One zone\n0 <= y <= x <= 5", fillcolor="#eef9ef", color="#5b8a5b", width=1.6, height=0.9];
r11 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r12 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r13 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r21 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r22 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r23 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r31 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r32 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
r33 -> zone [style=dashed, arrowhead=none, color="#7a7a7a"];
}](../../_images/graphviz-b41ed54c5d72893b49be1ab11a11c85791a3f81a.png)
The point of the picture is not that one zone always contains exactly nine regions. The point is that a zone is usually coarser than the underlying region partition and therefore much more practical as an engineering object.
The tradeoff is important:
regions give the clean finite quotient intuition
zones give the practical symbolic representation
naive zone graphs may still be infinite, which is why later pages need normalization and extrapolation
What Symbolic Successors Look Like
Once valuations are grouped into a zone, the next step is to lift ordinary timed-automata transitions from single valuations to sets of valuations.
For delay, the symbolic successor shape is:
For a discrete edge with guard \(g\) and reset set \(R\), the shape is:
These formulas should be read operationally:
\(v \in Z\) means we start from a valuation already represented by the current symbolic state
\(d \in \mathbb{R}_{\geq 0}\) means we allow non-negative delay
\(v + d\) means all clocks advance together by \(d\)
\(v \models g\) means the valuation enables the chosen edge
\(v[R := 0]\) means all clocks in \(R\) are reset to zero
In a real UPPAAL successor computation, invariants and target invariants also
restrict these sets. But even this simplified view already shows why the core
operation vocabulary later looks like up, guard intersection, reset, and
containment tests.
Common Intuition Traps
Three confusions are especially common here:
A symbolic state is not only a zone. It also fixes the control locations and the discrete data part.
A zone is not an arbitrary shape. It is a constraint-defined set of valuations, and in the basic DBM story it is convex.
A symbolic trace is not a promise about every point you see in it. UPPAAL’s symbolic-trace documentation explicitly warns that simulator traces are backward stable, but not necessarily forward stable [UPP_TRACE_SS].
Positioning And Takeaways
Why This Matters For pyudbm
This page is exactly where the role of pyudbm becomes easier to explain.
pyudbm does not represent the whole UPPAAL symbolic state by itself. It represents the clock-constraint layer underneath it:
Contextfixes the clock spaceClockobjects build the simple bounds and difference constraintsFederationstores one or more symbolic valuation sets over those clocks
So when this repository restores a high-level Python DSL, it is rebuilding the constraint technology that makes symbolic states workable, not trying to replace the whole verifier.
What To Remember
If you keep five ideas from this page, keep these:
concrete timed states are infinite because clocks range over real values
a symbolic state keeps locations and discrete data fixed, but groups many valuations together
zones are the practical constraint-based representation used by UPPAAL-style tools
regions explain finiteness in theory, while zones explain tool efficiency in practice
the later DBM layer exists because these zone operations need an efficient concrete representation
Next
The next natural page is DBM Basics: once the zone view is clear, the next question is why one matrix can encode such a set of clock constraints efficiently.
