Timed Automata

This page answers the next natural question after What Is UPPAAL?: what is the actual model that evolves over time?

For UPPAAL, the basic modeling object is a network of timed automata. Each automaton looks like a finite-state machine, but it is extended with real-valued clocks, clock constraints, resets, and location invariants [UPP_LOC] [UPP_EDGE] [UPP_SEM].

Basic Objects And States

The Running Example

Consider a tiny request/response controller with one clock x:

• in Idle, the system may send a request and reset x to zero

• in WaitAck, it waits for an acknowledgement while x <= 5

• if an acknowledgement arrives in time, the system returns to Idle

• if time reaches the deadline, the system can take a timeout transition to Error

This is already a timed automaton, not just a control sketch:

• send and ack are action labels: send means “a request is sent”, and ack means “an acknowledgement is received”

• in UPPAAL-style notation, ! means sending on a channel and ? means receiving from a channel

• the edge label send! / x := 0 means “send the request and reset x to zero”

• the edge label ack? means “receive the acknowledgement”

• the edge label timeout! means “emit a timeout event”

• the invariant x <= 5 restricts how long the automaton may remain in WaitAck

• the guard x >= 5 enables the timeout edge exactly at the deadline

The Basic Definition

One standard definition writes a timed automaton as

\[A = (L, \ell_0, C, \Sigma, E, \mathrm{Inv})\]

Read the tuple like this:

• \(L\) is a finite set of locations

• \(\ell_0 \in L\) is the initial location

• \(C\) is a finite set of clocks

• \(\Sigma\) is a set of action labels

• \(E \subseteq L \times \Sigma \times G(C) \times 2^C \times L\) is the edge relation

• \(\mathrm{Inv}\) assigns an invariant to each location

The set \(G(C)\) contains the clock constraints used as guards and invariants. A convenient syntax is:

\[g ::= x \bowtie c \mid x - y \bowtie c \mid g \land g\]

where \(x, y \in C\), \(c \in \mathbb{Z}\), and \(\bowtie \in \{<, \le, =, \ge, >\}\).

This notation is not accidental. The whole later zone / DBM story depends on the fact that guards and invariants are conjunctions of simple clock constraints rather than arbitrary real arithmetic [AD90] [BY04].

This is important enough to remember now. Later pages will keep using this fact: not only zone / DBM representations, but almost the entire symbolic verification toolbox around UPPAAL timed automata relies on the structural property that guards and invariants are conjunctions of simple bound or difference constraints. Regions, zones, DBMs, federations, normalization, and extrapolation all benefit from that restriction.

Returning to the running example above, the tuple can be unpacked concretely as:

\[A = (L, \ell_0, C, \Sigma, E, \mathrm{Inv})\]

with:

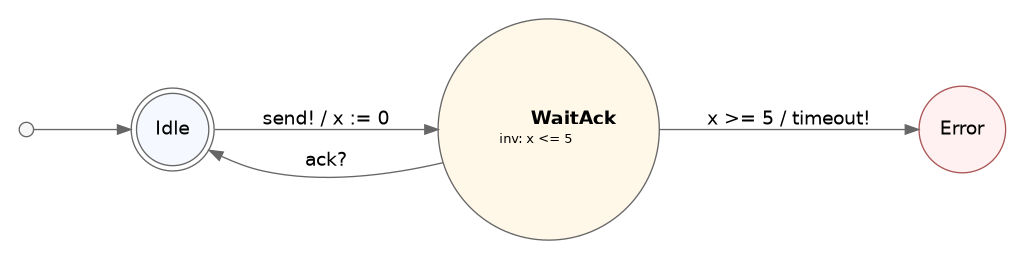

• \(L = \{\mathrm{Idle}, \mathrm{WaitAck}, \mathrm{Error}\}\), the three locations shown in the figure

• \(\ell_0 = \mathrm{Idle}\), because the system starts before any request has been sent

• \(C = \{x\}\), because the example uses only one clock

• \(\Sigma = \{\mathrm{send}, \mathrm{ack}, \mathrm{timeout}\}\), representing the three discrete actions “send a request”, “receive an acknowledgement”, and “timeout occurs”

• \(E\), the set of edges in the figure:

  \[E = \{ (\mathrm{Idle}, \mathrm{send}, \mathrm{true}, \{x\}, \mathrm{WaitAck}), (\mathrm{WaitAck}, \mathrm{ack}, \mathrm{true}, \emptyset, \mathrm{Idle}), (\mathrm{WaitAck}, \mathrm{timeout}, x \ge 5, \emptyset, \mathrm{Error}) \}\]

  The first edge means “send the request and reset x”, the second means “receive the acknowledgement and return to Idle”, and the third means “once \(x \ge 5\), a timeout may move the system to Error”

• \(\mathrm{Inv}\), which assigns an invariant to each location:

  \[\mathrm{Inv}(\mathrm{Idle}) = \mathrm{true}, \qquad \mathrm{Inv}(\mathrm{WaitAck}) = (x \le 5), \qquad \mathrm{Inv}(\mathrm{Error}) = \mathrm{true}\]

  So WaitAck is the only location with an actual time bound in this toy example, while Idle and Error impose no additional delay limit

If you also keep the diagram labels send!, ack?, and timeout! in mind, those are UPPAAL-style direction markers used in network semantics: this automaton sends send and timeout, and receives ack. For the mathematical tuple above, it is enough to record the action names as \(\mathrm{send}\), \(\mathrm{ack}\), and \(\mathrm{timeout}\).

Why A State Needs A Valuation

In an ordinary finite automaton, a control location is often enough to describe the current state. In a timed automaton, it is not.

We also need a clock valuation:

\[v : C \to \mathbb{R}_{\ge 0}\]

Each symbol here has a concrete meaning:

• \(v\) is a valuation, meaning “the current value assigned to each clock”

• \(C\) is the clock set; in the running example, \(C = \{x\}\)

• \(\to\) means “maps from one set to another”

• \(\mathbb{R}_{\ge 0}\) is the set of non-negative real numbers, such as 0, 0.3, 2.7, and 5

So \(v : C \to \mathbb{R}_{\ge 0}\) simply means: the valuation :math:`v` assigns a non-negative real value to every clock.

In the running example there is only one clock, so a valuation is basically telling us something like:

\[v(x) = 0 \qquad \text{or} \qquad v(x) = 3.2 \qquad \text{or} \qquad v(x) = 5\]

So a concrete timed state is written as \((\ell, v)\), where:

• \(\ell\) is the current location

• \(v\) gives the current clock values

For example, \((\mathrm{WaitAck}, v)\) with \(v(x) = 4.9\) means the system is in WaitAck and already very close to the timeout boundary.

Two helper notations are standard:

\[\begin{split}(v + d)(x) = v(x) + d \qquad\qquad v[R := 0](x) = \begin{cases} 0 & \text{if } x \in R, \\ v(x) & \text{otherwise.} \end{cases}\end{split}\]

These symbols are worth unpacking too:

• \(d\) is the amount of elapsed time, such as 1 or 2.5

• \((v + d)\) means “start from valuation \(v\) and let all clocks increase by \(d\)”

• \((v + d)(x)\) asks for the value of clock \(x\) after that delay

• \(R\) is the set of clocks that will be reset

• \(v[R := 0]\) means “start from \(v\) and replace every clock in \(R\) by 0”

• \(v[R := 0](x)\) asks for the value of clock \(x\) after the reset

The first means “let time elapse by \(d\)”. The second means “reset all clocks in \(R\) to zero”.

In the running example, because there is only one clock x:

• if \(v(x) = 1\) and we wait 2 time units, then \((v + 2)(x) = 3\)

• if \(v(x) = 4\) and some action resets x, then for \(R = \{x\}\) we get \(v[R := 0](x) = 0\)

For the running example, (WaitAck, x = 1) and (WaitAck, x = 4.9) are different states even though the control location is the same. One is still far from the timeout boundary; the other is almost forced to leave immediately.

Operational Semantics And Composition

Two Kinds Of Transition

Timed automata evolve in two fundamentally different ways:

• delay transitions, where time passes and all clocks grow together

• discrete transitions, where an enabled edge is taken and some clocks may be reset

For delay, the semantic rule is:

\[(\ell, v) \xrightarrow{d} (\ell, v + d) \quad \text{if } d \in \mathbb{R}_{\ge 0} \text{ and } \forall \delta \in [0, d],\; v + \delta \models \mathrm{Inv}(\ell)\]

Here the notation means:

• \((\ell, v)\) is the current state

• \(\xrightarrow{d}\) means “evolves by delaying \(d\) time units”

• \(\forall \delta \in [0, d]\) means “for every intermediate time point between 0 and \(d\)”

• \(\models\) means “satisfies”; for example, \(v \models x \le 5\) means the valuation \(v\) makes the constraint \(x \le 5\) true

• \(\mathrm{Inv}(\ell)\) is the invariant attached to location \(\ell\)

The important part is the universal condition over \(\delta\). It says the invariant must stay true during the entire waiting interval, not only at the end.

For a discrete edge \(e = (\ell, a, g, R, \ell')\), the rule is:

\[(\ell, v) \xrightarrow{a} (\ell', v[R := 0]) \quad \text{if } v \models g \text{ and } v[R := 0] \models \mathrm{Inv}(\ell')\]

Here:

• \(a\) is the discrete action label

• \(g\) is the guard

• \(R\) is the reset set

• \(\ell'\) is the target location

This separates the roles cleanly:

• the guard says when the edge is enabled

• the reset set says which clocks jump back to zero

• the target invariant says whether the destination may be entered legally

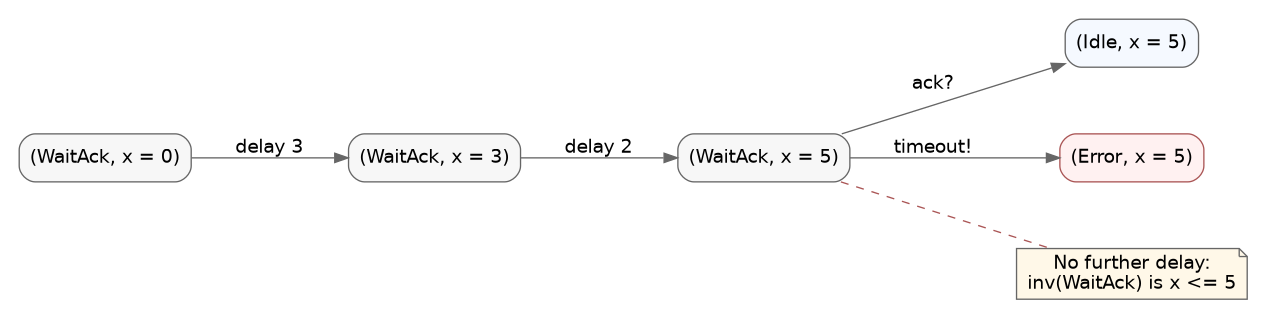

Here is the same running example viewed as concrete timed states:

The key semantic point is that the automaton may delay from x = 0 to x = 5, but not beyond. Once the boundary is reached, a discrete choice has to happen.

From One Automaton To A Network

UPPAAL usually works with networks of timed automata rather than only one automaton in isolation. A global state then has the shape

\[((\ell_1, \ldots, \ell_n), v)\]

where each \(\ell_i\) is the current location of one process and \(v\) is the shared clock valuation.

The intuition is:

• time delay is global, so all clocks advance together

• discrete steps may belong to one process alone, or to several processes synchronized by channels

• the verifier explores this infinite timed state space symbolically rather than valuation by valuation

This page stays with a single automaton because that is the smallest setting in which clocks, guards, resets, and invariants already make semantic sense.

Common Intuition Traps

Three confusions are especially common when timed automata are new:

• A location is not a full state. The valuation is part of the state too.

• An invariant is not just another guard. A guard controls an edge; an invariant controls how long time may remain in a location.

• Reaching a boundary often forces a choice. If no more delay is legal, the next move must be discrete or the run deadlocks.

Positioning And Takeaways

Why This Matters For pyudbm

This repository does not yet expose the whole UPPAAL language or full network semantics. But the timed-automata viewpoint already explains why the Python API needs clock-oriented objects:

• Context fixes the clock set \(C\)

• Clock objects build guards and clock-difference constraints

• Federation represents sets of valuations satisfying those constraints

So when pyudbm wraps clock constraints, it is not exposing random matrix plumbing. It is exposing the symbolic layer underneath guards, invariants, and reachable timed states.

What To Remember

If you keep five ideas from this page, keep these:

• a timed automaton is a finite control graph plus clocks

• a concrete state is (location, valuation)

• time elapse and discrete edges are separate transition kinds

• invariants bound how long time may stay in one location

• these clock constraints are exactly what later become zones and DBMs

Next

The next natural page is Queries and Properties: once the model is clear, the next question is what users usually ask about it.
