What Is UPPAAL?

This page is a beginner-friendly introduction. It answers one simple question: what problem is UPPAAL trying to solve?

UPPAAL is a tool environment for modeling, simulating, and verifying real-time systems. The official web site describes it as an integrated environment for networks of timed automata with data types, and the official documentation describes it as a tool for non-deterministic processes with finite control structure and real-valued clocks [UPP_HOME] [UPP_HELP].

For this repository, the big picture matters because pyudbm wraps one layer of that world. UDBM is not the whole UPPAAL story, but it supports one of the most important symbolic representations inside it.

From The Problem To The Tool

A Tiny Example

Consider a small request/response controller:

a client sends a request
a server should acknowledge it within 5 time units
if no acknowledgement arrives in time, the system enters Error

Even if you know nothing else yet, the core question already makes sense: can the system reach the error state?

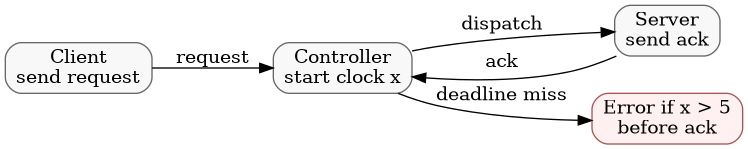

Here is a simple control sketch:

$digraph control_loop { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#f8f8f8", color="#666666"]; client [label="Client\nsend request"]; controller [label="Controller\nstart clock x"]; server [label="Server\nsend ack"]; error [label="Error if x > 5\nbefore ack", fillcolor="#fff1f1", color="#aa5555"]; client -> controller [label="request"]; controller -> server [label="dispatch"]; server -> controller [label="ack"]; controller -> error [label="deadline miss"]; }$

This is not yet a timed-automaton diagram. It is only here to make the story concrete before we introduce more terminology.

Why Not Just Test It?

Testing and simulation are still useful, but they answer a different question.

Testing asks:: “What happened in the executions that I tried?”
Model checking asks:: “Is there any execution allowed by the model that violates the property?”

That difference matters a lot for timed systems. A few sample runs may look fine, but the bad run might be the one where a component waits just a little too long. Time introduces many possible delays, so bugs can hide between the runs you happened to test [LPY97] [BDL04].

Why Time Makes Things Harder

In an untimed model, a state is often described mainly by control flow: “where am I in the program or automaton?”

In a timed model, that is not enough. We also need the current clock values.

One standard notation is:

\[v : C \to \mathbb{R}_{\ge 0}\]

Read it like this:

$C$ is the set of clocks
$v$ gives each clock a non-negative real value

That means two runs can be in the same control location and still be very different, because one may have waited 1.2 time units and the other 4.9.

For the running example, that difference is exactly what separates “still safe” from “deadline already missed”.

What Does UPPAAL Actually Do?

At a high level, UPPAAL supports a simple workflow:

build a timed model
simulate possible behavior
ask a verification query
get either an answer or a diagnostic trace

That workflow looks like this:

$digraph uppaal_overview { rankdir=LR; node [shape=box, style="rounded,filled", fillcolor="#f6f6f6", color="#666666"]; model [label="Timed model"]; sim [label="Simulation"]; query [label="Query"]; engine [label="Symbolic exploration"]; result [label="Answer or trace"]; model -> sim; model -> query; sim -> query; query -> engine -> result; }$

The official documentation also makes clear that UPPAAL is not only a language, but a tool environment with a GUI, a verifier, simulators, and command-line use [UPP_HELP] [UPP_FEATURES].

Why Symbolic States Appear

If clocks are real-valued, then there are too many exact timed states to list one by one. That is why UPPAAL does not work only with single concrete states. It groups many valuations together into symbolic states.

You do not need the details yet. For now, the key idea is simple:

exact timed states are too numerous
symbolic states group many of them together
this is what makes verification practical

Later pages explain zones, DBMs, and federations. This page only needs to give you the reason they appear at all.

Positioning And Takeaways

Why This Matters For `pyudbm`

pyudbm does not currently implement the whole UPPAAL tool chain. It wraps the UDBM layer. But that layer makes much more sense when you remember the larger workflow.

Users do not think in raw matrices first. They think in clocks, constraints, reachable behavior, and error conditions. That is why this repository restores high-level objects such as Context, Clock, and Federation.
